Products

PLC

Product

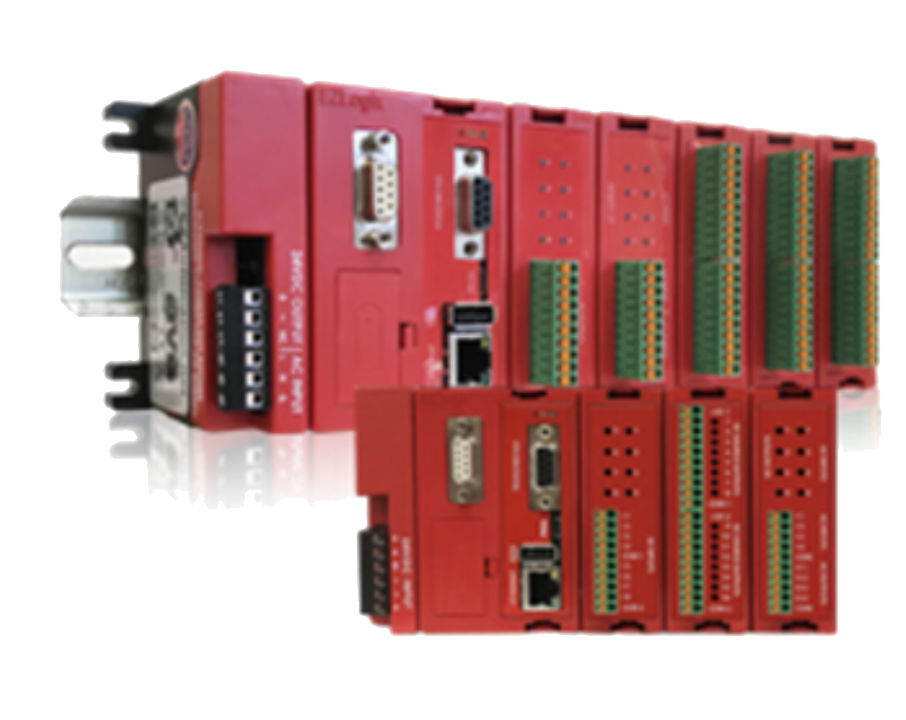

MODI AVG PLC

PLC

List of Innovative Features

3 base, 5 base, and 7 base racks with 16 pt. I/O Ethernet I/P Scanner allows it to run as a master for whole control system of devices on Ethernet I/P

IIoT ready with MQTT for massive data logging USB for local data logging

Most compact Highest Processing power/cubic inch. Selection of 17 plug-in mix-n-match I/O modules.

Easiest Drag-n-Drop programming software, bar none! Break-point debugging, Project Simulator

Extremely efficient free flow logic cuts down number of rungs at least by two High-end functionality of 55 powerful instructions and the list goes on...

Contact us for Booking Download catalogue

Product

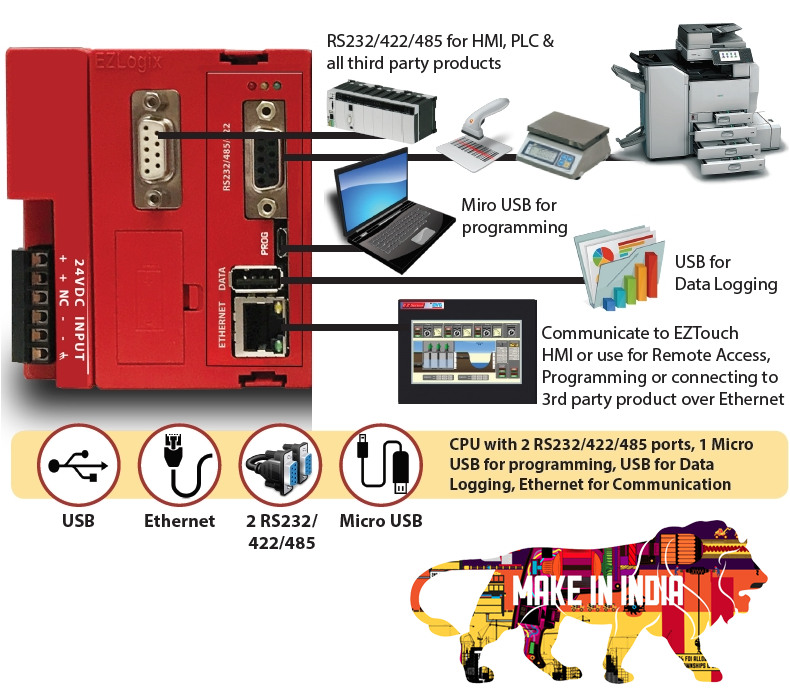

MODI AVG EZ Rack CPU with external devices connectivity

PLC
  • RS232/422/485 for HMI, PLC & all third party products

  • Micro USB for programming

  • USB for data logging

  • Communicate to EZTouch HMI or use for Remote Access, Programming or connecting to 3rd party product over Ethernet

  • CPU with 2 RS232/422/485 ports, 1 Micro USB for programming, USB for Data Logging, Ethernet for Communication
Product

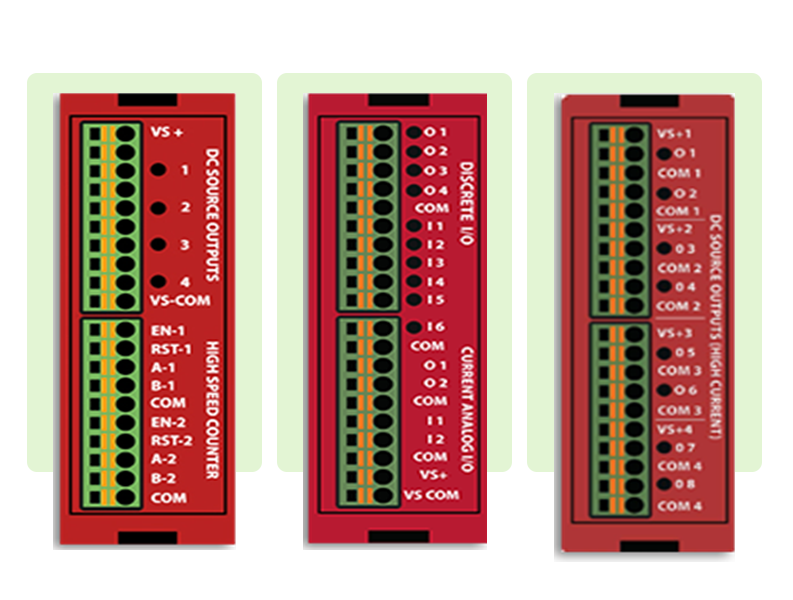

MODI AVG EZ Rack D/A IO Modules

PLC

Our IO modules are world class and quite innovative. 16 Point Rack mount IO modules are used in the EZRackPLC. These are DC Input, DC Output both Sink and Source, Relay Output modules, Analog Input, Analog Outputs (both current and voltage, 12 bit or 16 bit), high speed counter/PLS modules, PWM Modules, RTD and Thermocouple modules. EZRack I/O has many mix-n-match modules with DC In, DC Out as well as Digital and analog combination modules.

packing automations
Product

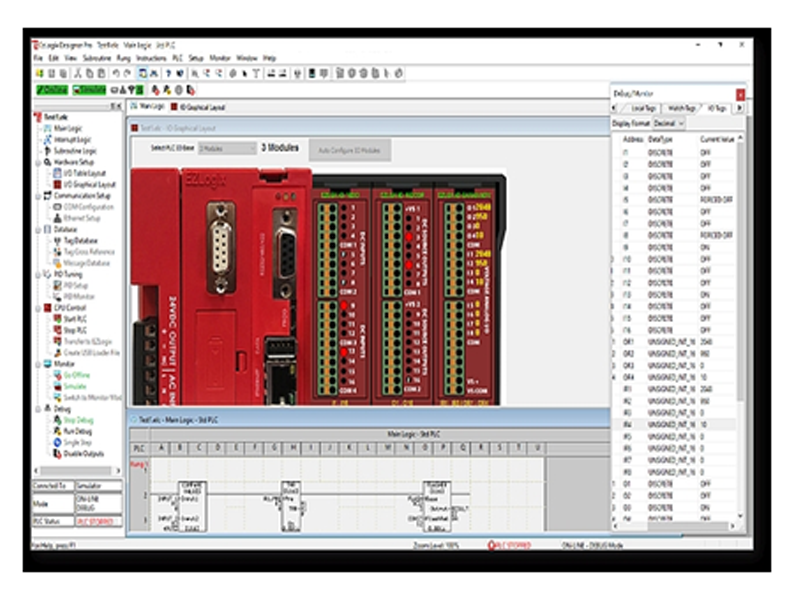

EZ Rack Integrated Simulator programming software

PLC

The built-in simulator creates a virtual PLC so you can test your ladder logic without any PLC hardware present.
• Our Windows application uses the same code as the EZRack CPU firmware for the most accurate simulation.
• It simulates discrete and analog I/Os with access to timers, counters, control bits, etc.
And if you eventually connect your EZRack, the I/O modules will be automatically detected and the respective tag address range will be assigned correspondingly

Product

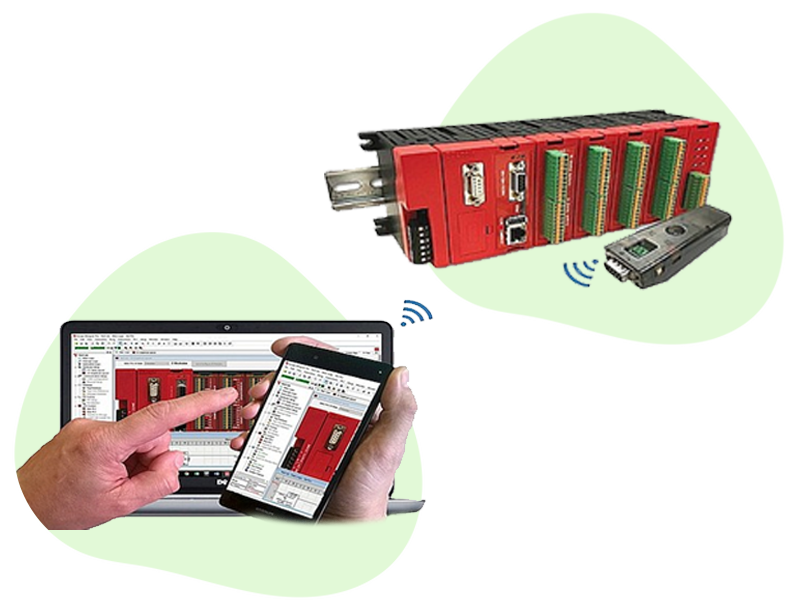

Access via smartphone or tablet over wifi

PLC

With the right EZWifi module, you can not only monitor the MODI AVG EZRack CPU via smartphone or tablet PC, but also both programmed offline and accessed online while in run mode. And don't you worry about security access, as each EZWifi module has its own unique SSID and password and data transfer is encrypted via WPA2!

Product

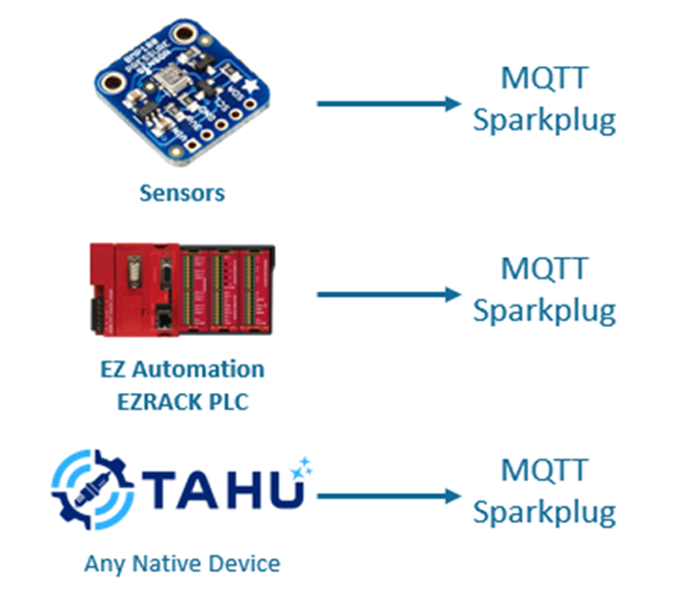

MODI AVG EZ Rack PLC MQTT Enable

PLC

EZRackPLC is our latest entry in the PLC world. It is exceptionally innovative with its IIOT ready MQTT with Ignition Sparkplug B protocol, a very tough mechanical design for IO retention, variety of 16 Point IO modules, Built in Ethernet, USB ports for programming and local data logging, Micro SD, and two serial ports. Its Ethernet IP Scanner allows it to control the entire network of Rockwell and compatible devices. It has both explicit and implicit I/O messaging. It comes in 3, 5, and 7 module bases not counting the CPU. It also has 16 bit Analog IO. It is the most advanced PLC in EZAutomation offering and a great value.
